BASIC Star Trek Games

Some of these are already scattered around my other pages and sometimes part of other things, gathering all of it together so I don't keep having to hunt the stuff down. Most of these programs are descended from '70's-era minicomputer and mainframe programs, converted as needed to run them on modern PC's or available simulators and sometimes highly modified to make them work the way I want. Some are not modified and presented as I found them.

Five systems/languages are represented here...

As far as I can tell, the material here was derived from public domain material, obtained from public sources and presumed free to distribute, or in the case of the antique operating systems, has been graciously released by the owner for non-commercial use. Star Trek is a registered trademark of CBS Studios Inc. which have nothing to do with any of this. This material is intended only for personal non-commercial use.


Trek Programs for the HP2000E Time Share Basic system

Most of the programs from the HP Contributed Users Library ran on larger Time Share BASIC systems such as HP2000C or ACCESS. It's possible to simulate the full system but it's tricky - two instances of the SimH hp2100 simulator have to be running and synchronized with each other, and if the system loses power while running it usually becomes damaged. The HP2000E was a cut-down version that ran on a single CPU, and it was simple enough to rig up a simulation environment for it on a relatively compact 7900 disk image with a utility system on the other side for booting it and fixing it when it didn't get put to sleep.. which only takes one forgetful window close. Although TSB-E only provided a bit over 4KW of memory, its BASIC was similar enough to the full version that interesting programs like STTR1 could be run without too much trouble, just had to break into chunks. The TTYTREK version of Trek was small enough to fit into memory in one chunk and required minimal mods to run.

STTR1

STTR1 was written by Mike Mayfield in 1973 for the HP2000C Time Share BASIC system, based on an earlier version written for a Sigma 7 mainframe that apparently was never saved to an actual file. The story with a note from the author can be read in this Games of Fame article.

Here's my modified TSB-E version of STTR1...


The main visual mod was I compacted the display and added divisions to the borders to make it easier to play.
Here is the TSB-E source code for this program: STTR1 STTR1A STTR1B STTR1C

Took a bit to figure out, but this appears to be the original STTR1 code I used to make the TSB-E version, the "Extracted from" comment isn't part of the actual code but was very helpful for tracking it down as I had lost my original source (I did the TSB-E conversion in 2006). Here's what a similar version of STTR1 looks like running on a simulated ACCESS system...



TTYTREK

This is an interesting Trek variation written by "Joe Altmaier sometime in the late 70s", adapted to run under TSB-E...

The concept is similar to other early Treks, the navigation directions and quadrant/sector system is the same as STTR1, but it uses letter inputs which are easier to remember than numbers and some things are very different like the enemy base and attacks taking place elsewhere. The look has been changed a bit, replaced empty space with periods to help navigate. Here's the source for TSB-E version of TTYTRK and brief instructions I made for it in TTYTRI. Here's what looks to be the close to the original TTYTREK program, and least that's what I started with.


Simulated TSB=E system

Here's a simulated TSB-E system containing these and several other programs (last modified 3/1/21).

This is the initial "HELLO" and a CAT listing of the current system...


To run the simulation you will need a copy of the SimH HP2100 Simulator. Also works with my old hp2100 binaries from 2008. For Linux, besides hp2100 the scripts are written to use the xterm terminal program. Edit the boot script to use something else. The Windows boot batch will likely need adapting, I couldn't get plain telnet to work but PuTTY worked mostly fine.. bit of noise at the startup so first thing entered is always wrong, but fine after that. Disconnection is a bit noisy about a network error.. it gripes Are You Sure when closing then gripes when the simulator just closes it. In Linux the telnet client just exits with no fuss.

Here's the operator console and the instructions it prints for starting up and shutting down...


TSB-E is a fairly fragile system, at least when running in a simulator (the real minicomputer originally used ferrite core and could ride through power outages). Accidentally closing the simulator console window or even the telnet window can and usually does break the system. Each time it is properly shut down the system writes itself to a simulated magtape file which can be used to restore the system if it breaks, if you get the dreaded system not slept halt, just enter do fix.sim to restore the disk from the last backup tape. Assuming it's good. Or just restore the disk image from the zip.

The stock TSB-E system uses the "_" character for "rub out", so entering CQT__AT is the same as CAT - it was designed for a teletype machine. These days our TTY devices can actually back up the cursor. With disk utilities and knowing where to look it's easy to change the "_" to an ascii-8 backspace for more normal operation. Most modern terminals emit ascii-127 for backspace, enter control-H or control-Backspace to get ascii-8 (some terminals have a swap function for that). On Windows BS used to be ascii-8, not sure what it is now. Control-H doesn't erase the character being backed over, and can't stop at the input prompt, but it's better that CQT__AT. Here's a HP-IPL/OS-based TSB-E utility I made for patching for that and restoring stock behavior. Can also flip the sleep flag, usually permitting unslept systems to boot again, at least long enough to copy off unsaved work. Does other stuff.


Trek Programs for Papertape BASIC for the 32KW HP1000 Minicomputer

In 2002 I started getting into HP1000-series minicomputers and with the help of Bob Shannon (along with a bit of insistence and bribery) we made a simple (almost but not really) Forth-like operating system called HP-IPL/OS. I did most of my work using the SimH hp2100 simulator program but Bob was into real hardware and sent me a real HP21MX E-series with 128KW ram to test with, in particular custom disk interfaces - real period HP disk drives were very expensive and difficult to maintain (not to mention being huge) so Bob designed an interface that permitted hooking up a plain IDE drive, common at the time. Bob made some words that could write and read chunks of memory to and from disk sectors, and I used those words to make "XDOS". In retrospect a really bad file system but it was simple and reliable and worked for what we were doing. Files were limited to 32KW max because it was designed primarily to save and load 31K binary copies of ABS files and that was the size of the main memory bank (the top 1KW is reserved). When it loads a binary it loads it into alternate memory then runs a tiny program that lives at 77000 octal that simply swaps main and alternate memory and runs from location 2. When done running the program, execute 77000 to return to HP-IPL/OS. Thus the system could run existing software like HPBASIC and MSUBASIC, and after exiting a program it was copied back to alternate memory so if it contained a BASIC program listing, the whole thing could be saved as a disk file or punched to a PC file, just had to figure out the continue or run entry point for BASIC and patch locations 2/3 to avoid erasing the listing on startup. While XDOS for HP-IPL/OS requires a 21MX system with at least 64KW memory, the binaries themselves run standalone on any 32KW HP21xx system.

I started converting TSB code to papertape BASIC around 2007-2008, mostly at first using MSUBASIC because I found the source for that first (MSUBASIC is compatible with papertape HPBASIC). But as with TSB-E, best I could do for backspace was find and change the "_" rubout character to control-H. The game-changer came in 2010 when I got hold of the source code for real "20392" HPBASIC and used the information to make "overlay" patches that added cool stuff like a proper ascii-127 backspace, peek, poke, byte I/O and my favorite feature, the ability to punch itself with an embedded BASIC program to make standalone ABS "apps". I didn't modify the core HPBASIC source at all, just made trivial mods to the prepare program to make it spit out a 28KW version then loaded stuff past that (including the old OCTOPUS utility) with a few hooks into the HPBASIC code to intercept characters for backspace etc. The modified version of HPBASIC with source code and a bunch of games is in the hpbapps.zip file.

TREKPT - a STTR1 conversion for Papertape BASIC

The first thing I converted to papertape BASIC was STTR1 in 2007-2008, started with the TSB-E version since I liked the way it worked and that code had already been somewhat simplified. This turned out to be a major undertaking, as this was before I found decent docs and source code. I mistakenly thought that papertape BASIC only supported single letter variables (it can use letter+number variables like TSB, I was just having other issues..) so in an attempt to make it work I changed all the variables to single letters or arrays. Somehow I managed to mess up the coordinate system, after the conversion it use X,Y coordinates instead of the usual Y,X but otherwise worked fine.

Here's TREKPT for papertape BASIC...



TTYTREK for Papertape BASIC

Here's a papertape version of TTYTRK...


This conversion went much smoother, by this time I had better docs!

PTSTRK

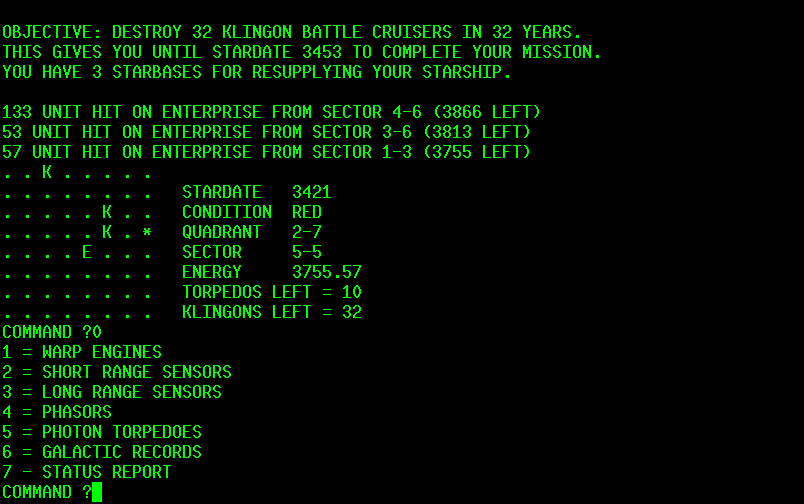

This is a conversion of L.E. Cochran's version of Star Trek...

This program was originally written for the Altair computer and published in Computer Notes 1976 02 01. For this papertape BASIC conversion I started with the QBasic version of the program (file date 2000) presented below and did the usual mods to make it run under papertape basic - one statement per line, no strings, array indexes start at 1 not 0, added number print subroutines, etc. Since memory isn't as much of an issue the instructions are built in. I was a bit surprised that papertape basic supports comparisons in math expressions but the sign is flipped compared to MS BASICs like QBasic and Altair BASIC - expressions like (A>2) evaluate to 1 if true rather than -1 so that had to be fixed. After the conversion it only barely resembled the original code (plus there was a conversion bug in my originally posted version.. happens) so made a few changes to the original logic. The original subtracted one stardate for every move, no matter how small or large.. changed the formula so that moves less than warp 1 cost only that much time (rounded to 0.125 increments.. no cheating by doing 0.1 instead), and moves more than warp 2 add an extra 0.1 year for each extra warp distance traveled. A bit more balanced now. Dropped years remaining from the short scan display, added that and other information to a new status report command, and modified some of the text displays. This is fun code to hack around with.

Here's a zip containing binary ABS versions of TREKPT, PTSTRK and TTYTREK that work with the hp2100 simulator.

HP2100 simulator notes

The "new" hp2100 simulator from the SimH HP Simulator page works a bit differently than old versions of hp2100. I've only just began to use the latest version (version 3.11-2 Release 30), the biggest change I've noticed so far compared to old versions (I don't know how long it's been this way) is the command 'load file.abs' no longer works as a general purpose load mechanism, it is now strictly restricted to the boot loader area in the top 64 words of memory. This was always kind of a cheat, the command was as if someone hand-decoded an absolute binary system format papertape and keyed in the decoded words via front panel switches one word at a time. While theoretically possible (but fairly sure that it never happened for anything lengthy) and certainly convenient for the modern hp2100 simulator operator, this load behavior is not realistic and is nothing like how real HP21xx and HP1000-series minicomputers operate. The correct way to load a long ABS file is to do it how it's done on the real hardware.. replace the simulator command 'load filename.abs' with 'attach ptr filename.abs' followed by 'boot ptr', that should work the same with all versions of hp2100. This method is also more compatible as, although rare, it's possible that software might depend on values left by the stock papertape loader or expect that PTR remains attached to the input binary to load additional data.

Other other visible changes I've noticed (that affect my existing scripts or how I use the simulator)... Commands like 'set throttle 50%' have to be entered as 'set throttle 50%%' if used from the simulator prompt, scripts don't seem to be affected but different simulator versions interpret it differently so changing the scripts to use commands like 'set throttle 3000K' instead. If there is an unrecognized command (such as the 'set [device] translate' command I added to my old modified hp2100 simulators for simple HP terminal emulation) the simulator pauses rather than just skipping the command. Pressing control-E to halt the simulator now drops to the scp> prompt where you can enter one command then the simulator automatically continues. Have to now press control-E twice to get to the sim> prompt. The CLK device is now called TBG but it still accepts CLK. The d tty ttime and d tty ktime commands no longer work... this affects the 7906 Disk Sim but that's the least of its trouble - binary loads don't work any more with the new simulator version .. for now to keep that simulation running I included the old working Linux/Windows binaries, not a clue what the trouble might be.

The following simulator commands can load these and other ABS binaries scattered around my pages, and should work with all versions of hp2100...

;next two commands only matter if using extra memory
set cpu 21MX
set cpu 256K
;next command determines the speed
set throttle 3000K
;the dev sets are optional if just using TTY text output
;otherwise must match the binary that is being run
;MSU BASIC expects clk to be device 10. TTY defaults to 11
set clk dev=10
set tty dev=11
set ptr dev=12
set ptp dev=13
;this is needed for terminal codes or lowercase
set tty1 7B
;change the next command for what's being loaded
attach ptr filename.abs
boot ptr
;starting address, usually 2
run 2

To just load say TREKPT.abs and not use the punch capability, it simplifies to...

set throttle 3000K
attach -e ptr TREKPT.abs
boot ptr
run 2

Here is my current general purpose ABS load-and-run script for Linux, included in the zip linked above...

----------- begin file hp2100_runabs -------------------
#!/bin/bash
# This script assists in running abs files in the SimH hp2100 simulator,
# associate *.abs files to this script or run as a file manager script.
# Creates a temporary file in the /tmp/ directory containing the setup.
# As written uses xterm for the terminal, edit for other terminals.
# Note - filename must not contain spaces
# 2/26/21 updated to work with both old and new hp2100 simulators
tempfile="/tmp/hp2100_run.tmp"
cd $(dirname "$1")
> $tempfile echo "set cpu 21MX"
>> $tempfile echo "set cpu 256K"
>> $tempfile echo "set throttle 3000K"
>> $tempfile echo "set clk dev=10"
>> $tempfile echo "set tty dev=11"
>> $tempfile echo "set ptr dev=12"
>> $tempfile echo "set ptp dev=13"
>> $tempfile echo "set tty1 7B"
>> $tempfile echo "attach -e ptr" $(basename "$1")
>> $tempfile echo "boot ptr"
>> $tempfile echo "run 2"
xterm -geometry 80x25 -bg black -fg green -fn 10x20 -e hp2100 $tempfile
rm $tempfile
----------- end file hp2100_runabs ---------------------

I've updated the HP2100treks.zip and TSBEsim.zip packages here but there are other hp2100 simulator related things around my pages that will need adjustments to work with the new hp2100 simulator. So far I've been able to find settings that work with the old, new and the v4 branch of the hp2100 simulator.


Trek Programs for Atari 800/XL/XE

I went through a few 8-bit computers early on.. ZX81, Tandy Color Computer, Commodore 64, then in the late '80's got into the Atari 8-bit computers. The Atari 800 was a really nice machine, built like a tank, but it only had 48K ram. The XL and XE series were flimsier but nicer to program. One of the programs I played with a lot was a version of Super Star Trek that I typed in from David Ahl's 1978 book BASIC MICROCOMPUTER GAMES. Like most 8-bit computers back then, the Atari had a fairly limited 40-column text display so had to get creative. My TREK.BAS program kept the SRS display on screen at all times and auto-updated it (unless it was damaged), new commands would "suck up" the text from the previous command. Or at least was supposed to.. sometimes the display would get messed up and required a SRS command to fix it.

My old Atari XE130 system was still working when I got a PC in the early '90's and I was able to dump my floppy disks to disk images, I forgot how I did that but probably involved some sort of serial transfer, I had a box for my Atari that contained extra memory, a real time clock and a serial port. Just glad I was able to save a lot of my old Atari stuff.

TREKMOD.BAS

Last year (2020) I dragged out my old Atari version of Super Star Trek and fixed up some of the screen update bugs, and added difficulty levels that increased the initial Klingon strength and the chances of the Klingons attacking when entering a quadrant (in the stock game the Klingons never fired first). Recently fixed a couple more screen update bugs.

Here's TREKMOD running in the Atari800 emulator...


Here's the TREKMOD source listing, it's not the actual source code as besides Atari BASIC programs being stored in tokenized form, PC's do not understand the Atari character set. To create the source display files, the BASIC programs were LISTed to PC disk files (the Atari800 simulator can access PC files using the H: device) then a QBasic program I made was used to convert the listing to Unicode and HTML that somewhat resembles how the code looks on an Atari. My converter does not handle every possible character and does not use many of the "potential Unicode equivalents" listed on the wikipedia page, instead

ENTERPRI.BAS

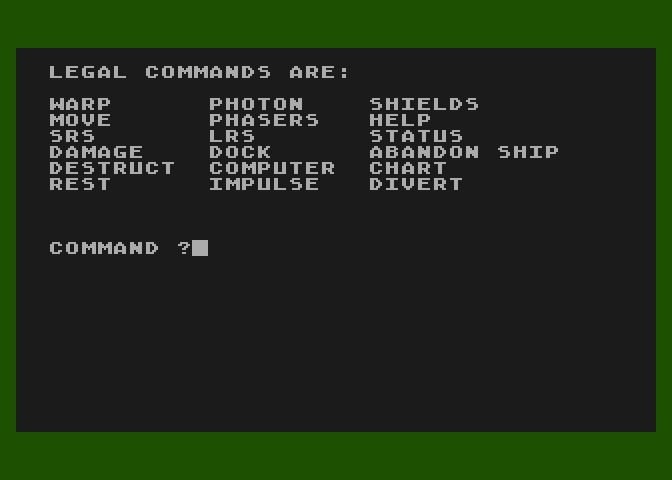

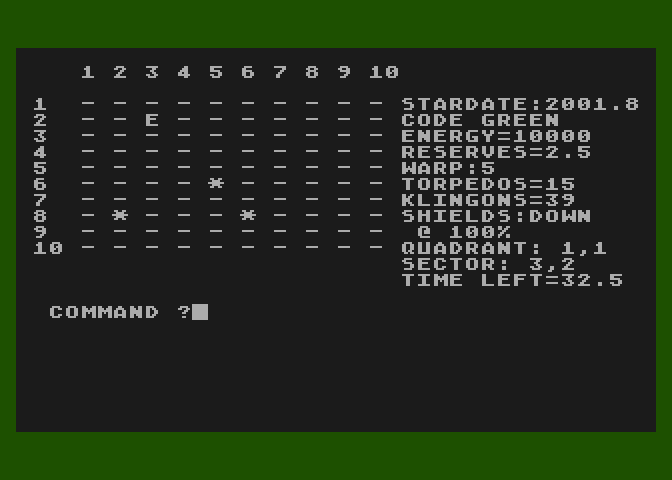

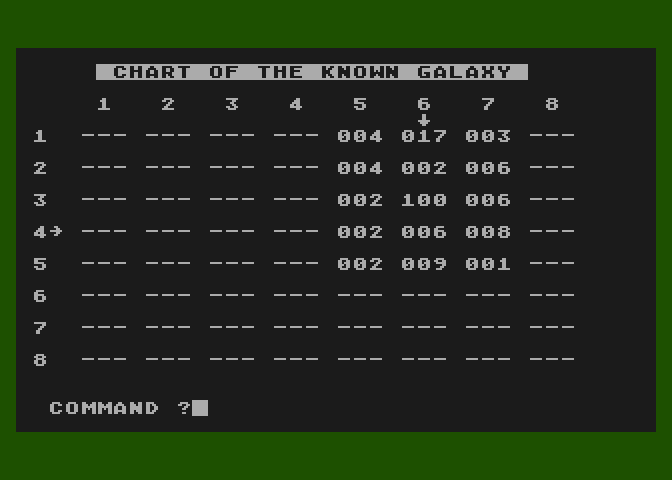

This version of Star Trek seems to be inspired by the mythical CDC6600 FORTRAN mainframe version or the "INTELLECT MDS" version that was inspired by it, this variation of the Star Trek game uses a 10x10 sector grid and directions are entered by clock direction, due east is direction 3, north is 12 etc. I don't know who wrote this version or remember where I got it from, but certainly from a BBS because back then there was no public internet.


Here is a converted listing of the ENTERPRI.BAS program and its ENTPDOCS.BAS documentation program.


STARTREK.BAS

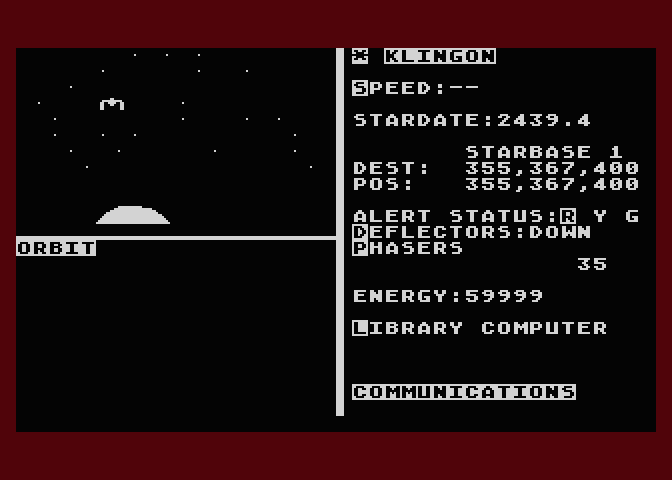

This is Ed Spoon's take on a Star Trek game...


It's not at all like other text versions of the game, if you can't dillydally in this one or you will be taken out. As the documentation explains it is not meant to be like "the monotonus Enter coordinates/star chart Star Trek clones of the past". Here is the converted STARTREK_BAS listing. This is just like I found it in my Atari disk dumps, I do not know if it has been altered but likely not. The Internet Archive has the original disk version of Ed Spoon's STARTREK.

Here is a zip file containing a disk image containing these Atari Trek games along with source listing and Linux scripts for booting it in the Atari800 emulator.


Trek Programs for QBasic

The following programs require the actual QBASIC.EXE program to run as listed, they will not run in QB64 or FreeBasic without mods, although the mods should be fairly minor. In particular, QB64 and FreeBasic do not support DEF FNX(Y)= type of function definitions (it shouldn't be that hard to convert). The real QBasic is used because it is closer to the original BASICs and many of the original programs require only minimal modification. The original QBASIC.EXE is widely available and works under DosEmu/FreeDos or DosBox. QBasic.net has downloads and instructions. Microsoft even has QBasic for Windows 10 in their app store but I don't know how close it is to the original.

SST0.BAS

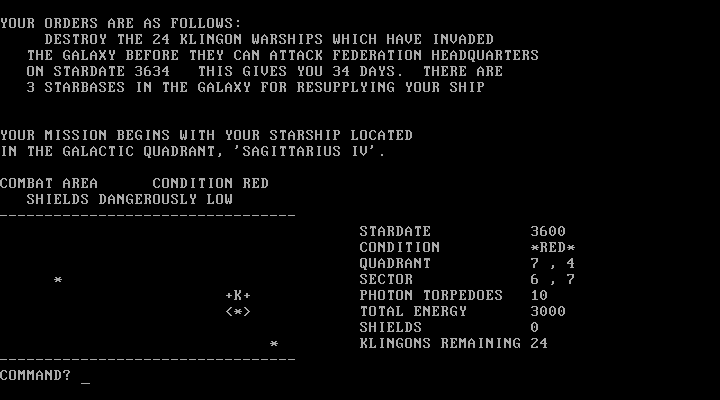

This is a QBasic conversion of Super Star Trek from David Ahl's BASIC MICROCOMPUTER GAMES...


I started with listings from the Vintage Basic Games website, little was done to it beyond separating the commands and incorporating the instructions into the program, it still requires uppercase input. A typo was corrected in line 440 (B9=2 is supposed to be B9=0) that causes the number of bases to be off by 2. There is a similar typo in line 1150 (the 120 is supposed to be 100) but that one is in favor of the player and remains in this version.

ST1.BAS

This is a QBasic version of Ron Williams' *** SUPER STAR TREK ***...


This version of the game is based on the CDC 6600 mainframe version, despite the name it is very different and more complicated than the version of the game published by David Ahl. This and similar descendants (including trek from the bsdgames package) use clock-face directions - 12 is due north, 6 is south, 1.5 is north-east etc. There are other versions of this floating around but most have been converted to run on other versions of BASIC. The other day I was rummaging around and found a cryptic program named STREK.BAS that when run produced a zip file containing ST.BAS, which turned out to be an older but damaged INTELLEC MDS VERSION of Trek. I think I found most of the major bugs but I won't swear to it.

STARTREK.BAS

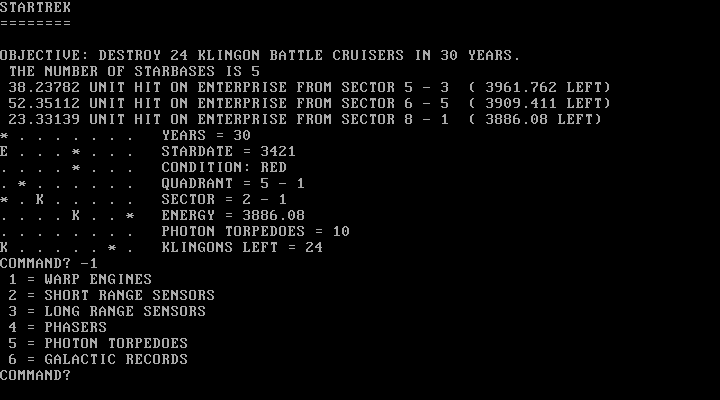

Popular file name! This is a QBasic version of L.E. Cockran's Trek, originally from 1976...


Here's the instruction file. I don't know where I got it, the files are dated November 2000, as far as I can tell I haven't made any changes to it. This is simplified version of Mike Mayfield's concept with only 6 commands, no need for separate shields or having to remember to raise them. Those must be short years. The program was originally written for an Altair computer, this appears to be the original BASIC source code. The QBasic code is very similar as both are Microsoft versions of BASIC.

Here is a zip file containing the above QBasic Treks.

Something extra.. here's a QBasic conversion of UT-Trek that I just started working on...



So far I've done just enough to it to make it run, needs a lot of formatting work.


Super Star Trek for BBC BASIC for SDL

BBC BASIC for SDL is Richard Russell's cross-platform implementation of BBC BASIC and is available for Windows, Linux, Mac and even Android. It can run many old BBC BASIC programs unchanged or with minimal modification and it doesn't take much to convert other BASIC programs to work with it, yet it is also a modern BASIC that runs on modern computers and can be used to create rather impressive graphical software. BBC BASIC for SDL programs can be compiled to Windows executables using the BBC BASIC for Windows compiler, the resulting binaries are compact and have no dependencies and work under Linux too using wine (is not an) emulator. The compiler also works fine in Linux with wine.

SST2

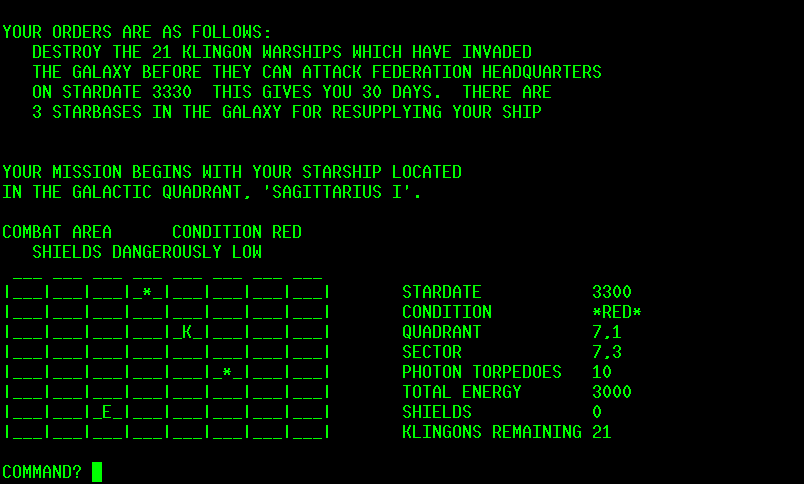

SST2.bbc is a fairly straight conversion of David Ahl's Super Star Trek...


It uses a grid to represent the quadrant which I find makes it easier to navigate and aim torpedoes without computer assistance, the stock look can be restored by changing a couple variables near the beginning of the program. Not a whole lot was needed to get SST to work in BBC BASIC, the original mostly already works but the formatting is off because BBC BASIC doesn't add extra spaces (I like that! I always disliked the extra spaces added by Microsoft BASICs) and help lists can't be brought up because in BBC BASIC out of range ON GOTO is not allowed. So fixed up that stuff. When reading the docs I learned that BBC BASIC uses the stack to control loops and there was five places (that I noticed..) where it jumps out of a FOR/NEXT loop without going through NEXT - while the code seemed to work fine the docs specifically warn to not do that and it can leak memory and result in subtle to severe bugs, so converted that code to use counters and conditional jumps. Added a subroutine to be able to enter commands in lower-case, played with the display and made a couple changes to the computer to move the record to option 6 so enter would bring up the list, added current location marks to the record and modified the calculator so it would also print unit distance.

Once I was playing it and was seriously low on energy and while status said I had three bases but having been through the galaxy found only one... then got to looking at the init code and that's when I found the B9=2 typo in the Vintage Basic source listing. Later also found and fixed a similar typo on line 1150.

SST3

Now to have fun with it...



The SST3 version adds color, game save and restore, harder difficulty levels, and preferences that it saves to a file. I had been playing with SST2 on my Android phone, and on a tiny screen sometimes it was hard to tell what was what and often I missed critical information like running out of energy or shields. Adding COLOUR commands helped a lot.. bad things are red or magenta, caution things are yellow, things like damaged systems being fixed are green etc. If the color is too much you can turn it off in the preference dialog. The game save feature lets me save a game in progress by entering SAE (save and exit) then continue later, if a save file is present it prompts to restore the previous game. It's not intended as a cheat mechanism, you can work around it but normally when the game ends by winning, losing or quitting, the save file is removed. The harder difficulty levels increase the initial Klingon strength, and make it so that sometimes the Klingons shoot first when entering a quadrant. This is similar to the mod I made for the Atari version. It is still experimental, higher levels make it very difficult to survive long so to make up for that you get more energy when recharging, use level 0 (or just press enter when prompted) for the stock game.

Running the program under Android is a bit different due to platform differences... on my phone anyway, the only way to trigger Esc to interrupt the program was to hit the "back" button twice, and then the on-screen keyboard went away and it is very tricky (but possible) to get it back. To get around that I added another command STO for stop that stopped the program and displayed the BBC BASIC > prompt without making the keyboard go away, perfect for hacking the code on the go. The Android version of BBC BASIC uses a shell called "touchide" for browsing and running BBC BASIC programs, most of the examples return to the shell by trapping errors including Esc, so pressing back once or twice (depending on if the keyboard was showing) made it exit back to touchide, at other times I prefered to just quit. I was using a separate versions for different behaviors but keeping them in sync was a hassle so added a SET command that brought up a preferences dialog. It ain't pretty, just a sequence of prompts where just enter keeps the stock setting. The SET dialog lets you choose Monochrome or Color (if monochrome then prompts for foreground and background color codes), choose between 5 different SRS displays - stock, grid, dots and two styles of top/bottom border divisions - lets you choose how it exits - quit, end or touchide (which only shows if running under Android) - and what to do if an error occurs (or Esc pressed) - end for a > prompt with an error report or whatever is chosen for exit. Then it prompts to save the preferences. If no then if a preference file exists it prompts to delete it. Despite the sequential nature it's easy to use, enter always defaults to do nothing.

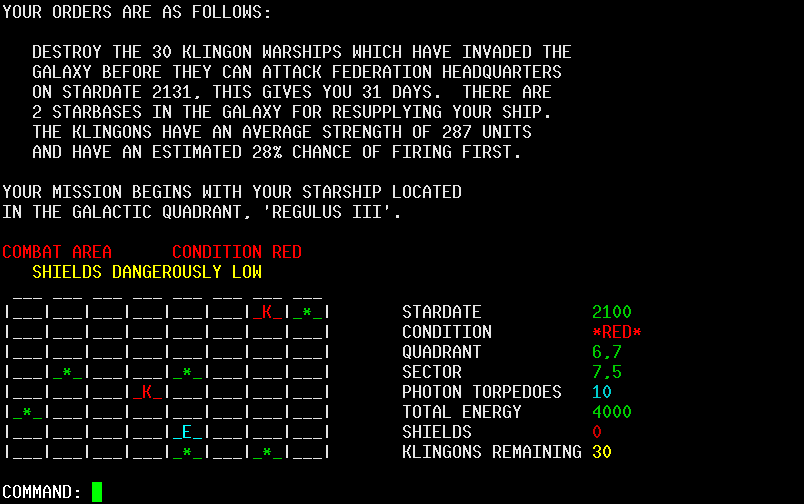

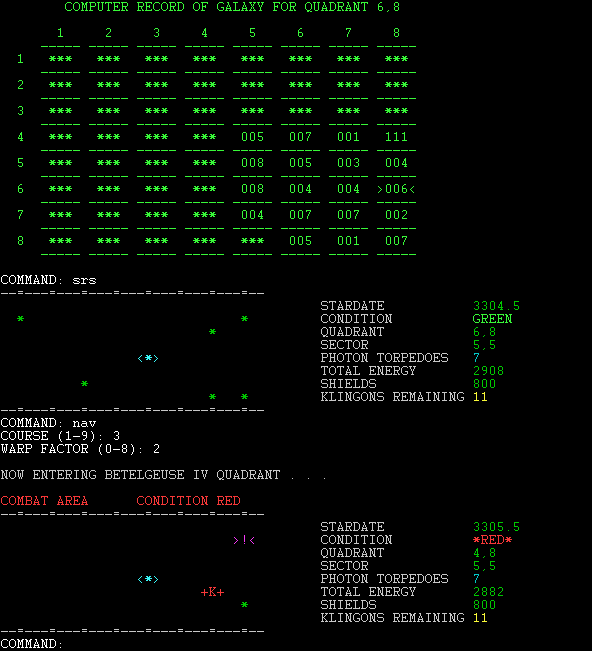

Here are some screenshots of the Windows exe version running under wine...


Here's a zip file with the SST3 package, it contains the source in text and .bbc form, the Windows executable and a doc file.

It probably isn't "done" (code like this never really is done, just periodically frozen in moments of time) but one of the things I'd like to do now is explore BBC BASIC's more graphical features and other modes (perhaps something that also works with the stock BBC Micro), maybe use some of the concepts from these old Trek games to make an entirely different game. Doesn't have to be Trek but having played this and similar games for a large portion of my life I'm kind of partial to the basic idea - a grid of areas to visit, within each grid there is stuff to do, and most importantly, it waits for you to decide.


This page was created Feb 26, 2021, last mod Mar 11, 2021.
